Vacuum Granular Bag Packing Machine 50-1500g Automatic

認証
中国 Hangzhou SED Pharmaceutical Machinery Co.,Ltd. 認証
中国 Hangzhou SED Pharmaceutical Machinery Co.,Ltd. 認証
顧客の検討
 私は私達の噴霧乾燥器、高速乾燥のための正しい噴霧器を選ぶためのすべてのあなたの努力に感謝することを望みます。噴霧器、湿気の95%-98%を通して霧化の後でたくさん増加した高温気流で原料の液体の表面積だけは、必要性の二回目すぐに蒸発します。

—— Fatih BÜYÜKEGEN

私は実際にの感謝する方法をです私の天使知りません、非常に本当にありがとう。この1つを霧状にする超微粉は他の同じ力機械より速く、作動し易いですおよび修理されて。

——  Hamid Doroudian

オンラインです

Vacuum Granular Bag Packing Machine 50-1500g Automatic

Vacuum Granular Bag Packing Machine 50-1500g Automatic
Vacuum Granular Bag Packing Machine 50-1500g Automatic

大画像 :  Vacuum Granular Bag Packing Machine 50-1500g Automatic

商品の詳細:
起源の場所: 中国
ブランド名: SED Pharma
証明: CE
モデル番号: SED-220KGD-D
お支払配送条件:
最小注文数量: 1セット
価格: 交渉可能
パッケージの詳細: 木製ケース
受渡し時間: 預金を受け取ってから35日後
支払条件: T/T、L/C、MoneyGram、現金
供給の能力: 月額30セット

Vacuum Granular Bag Packing Machine 50-1500g Automatic

説明
名前: 真空粒状バッグの梱包機 寸法(l*w*h): 2300*2800*1500mm
充填重量範囲: 50〜1500g 力: 8KW
重さ: 3100kg キーワード: 真空粒状バッグ 包装機 サケット 包装機 錠剤 包装機 サケット 自動
ハイライト:

automatic granular packing machine 50-1500g

,

vacuum bag packing machine with warranty

,

automatic packing machine for granular products

High Speed Automatic Vacuum Granular Bag Packing Machine for Chemical
Product Attributes
Name Vacuum Granular Bag Packing Machine
Dimension (L*W*H) 2300*2800*1500mm
Filling weight range 50-1500g
Power 8KW
Weight 3100kg
Product Description

This bag packaging machine combines advanced functionality with user-centric design. Operated via PLC control and an intuitive HMI system, it ensures straightforward operation. Bag size changes take under a minute, enabling quick adjustments.

Boasting high automation, it handles weighing and packaging entirely unmanned, with automatic fault alerts. Its smart prevention system detects bag opening issues, avoiding material waste and unnecessary sealing.

Constructed with stainless steel in packaging areas, it meets GMP standards for material safety. Imported oil-free plastic bearings and a non-oil vacuum pump minimize contamination risks. The dust and water-resistant design allows easy washing, extending service life. Its integrally formed, repeatedly calibrated frame guarantees perfect parallelism for stable performance.

Key Features
  • Easy operation: Equipped with PLC control and human-machine interface operating system, making the operation intuitive and convenient.
  • Convenient adjustment: Changing bag sizes can be completed within 1 minute.
  • High degree of automation: Unmanned operation is realized in the whole process of weighing and packaging, with automatic alarm for faults.
  • Perfect prevention system: Intelligently detects whether the bag is opened and whether the opening is complete, preventing material waste.
  • Stainless steel construction in packaging areas ensures hygiene and safety, complying with GMP standards.
  • Imported plastic bearings with precise tolerances require no oiling, reducing material contamination.
  • Oil-free vacuum pump avoids polluting the production environment.
  • Dust-proof and waterproof design allows water washing, reducing cleaning difficulty and prolonging service life.
  • Integrally formed main frame with repeated calibration ensures perfect parallelism for stable performance.
Technical Specifications
Model SED-220KGD-D
Speed 50-60 bags/min
Power 8KW
Suitable air compressor 0.6-0.8m³/min
Filling weight range 50-1500g
Weight 3100kg
Dimensions (L*W*H) 2300*2800*1500mm
Product Image

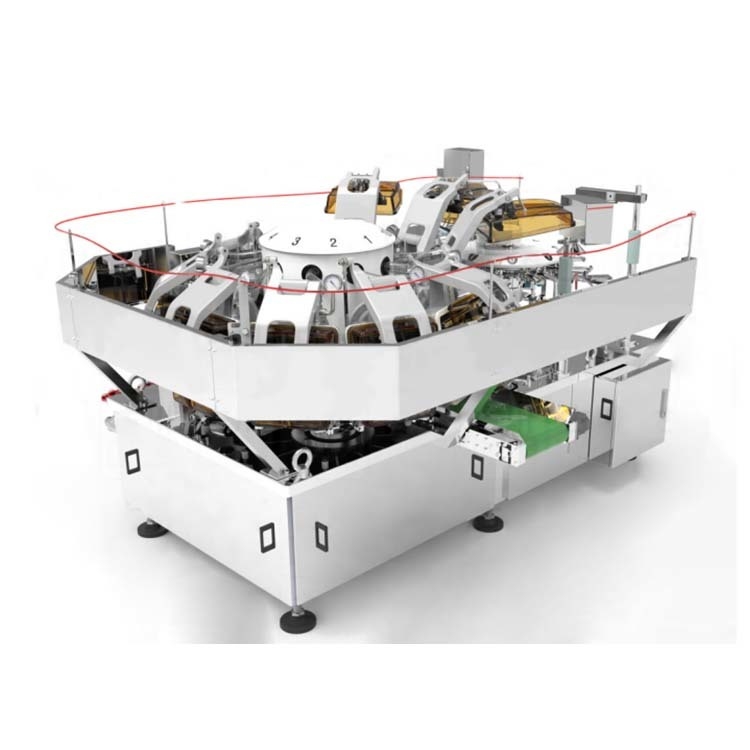

Vacuum Granular Bag Packing Machine 50-1500g Automatic 0
